Rigid Chain Lift Table Specifications

Product Overview:
Our Rigid Chain Lift Tables are designed for high-performance lifting applications requiring precision, durability, and reliability. Using a rigid chain mechanism, these tables provide smooth and controlled lifting, making them ideal for industrial environments, assembly lines, and heavy-duty material handling operations.

Technical Specifications:

• Lifting Capacity: Available in standard capacities ranging from 500 kg to 10,000 kg. Custom capacities available upon request.

• Platform Size: Configurable based on customer requirements. Standard sizes range from 1000 mm x 800 mm to 3000 mm x 2000 mm.

• Lifting Stroke: Up to 3000 mm (customizable for specific applications).

• Closed Height: Starting from 250 mm, depending on model and capacity.

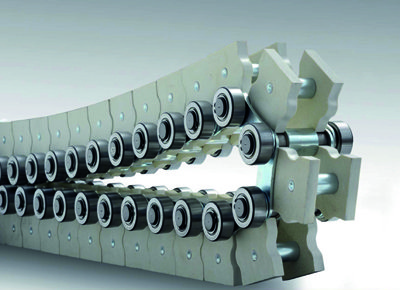

• Lift Mechanism: Rigid chain drive system ensures precise and stable lifting motion.

• Lifting Speed: Standard speed of 100 mm/sec (adjustable as per application requirements).

• Drive System: Electric motor-powered operation with variable speed control.

• Power Supply: Available in 400V/3-phase or customized power configurations.

• Safety Features:

  • Safety locking mechanism to prevent accidental lowering.

  • Overload protection system.

  • Emergency stop functionality.

  • Optional safety bellows for added protection.

  • Anti-slip platform surface.

  • Load positioning sensors (optional).

Key Benefits:

• Durability & Reliability: Rigid chain technology eliminates the need for hydraulic components, reducing maintenance and increasing longevity.

• Precision & Stability: Provides highly accurate positioning with minimal deflection under load.

• Compact Design: Suitable for low-profile applications where space is a constraint.

• Energy Efficient: Lower energy consumption compared to hydraulic lift tables.

• Customization: Available in various sizes, capacities, and configurations to match specific industry needs.

• Low Maintenance: No hydraulic fluid, eliminating leaks and associated upkeep.

Applications:

• Automotive manufacturing and assembly lines.

• Aerospace component handling.

• Heavy machinery and tooling applications.

• Logistics and warehousing operations.

• Work positioning and ergonomic lifting solutions.

Optional Features:

• Wireless Remote Control: Enables operation from a distance for enhanced convenience.

• Bellows Covering: Provides additional protection against dust, debris, and external elements.

• Custom Paint & Coatings: Available in different finishes for corrosive or specialized environments.

• Load Weighing System: Integrated sensors for precise load measurement.

• Interlocking System: Enables integration with conveyor systems or automated production lines.
